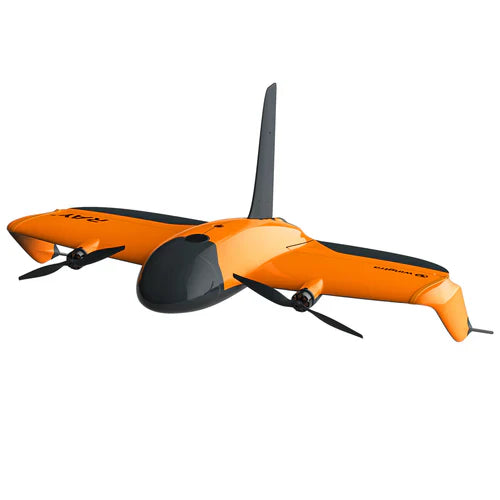

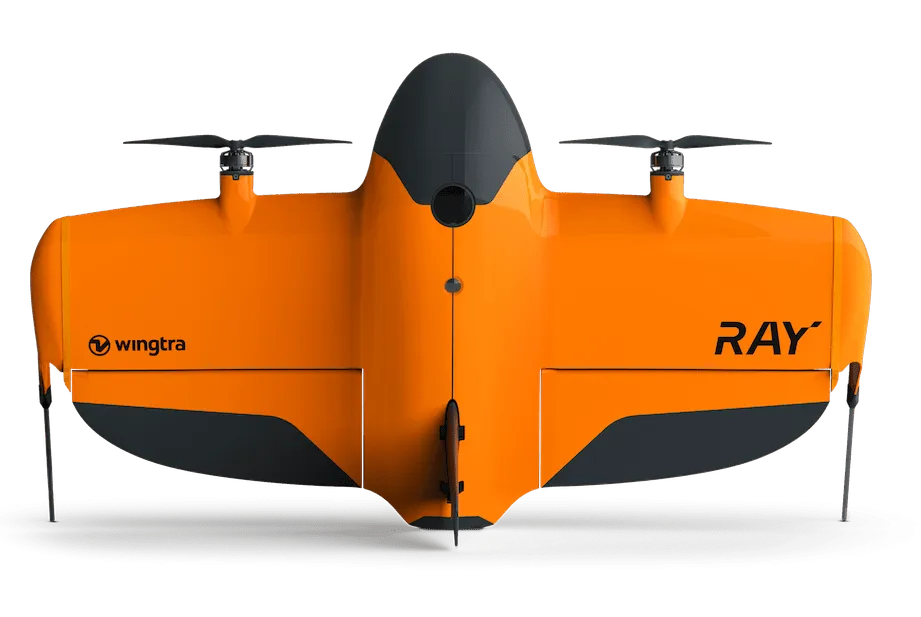

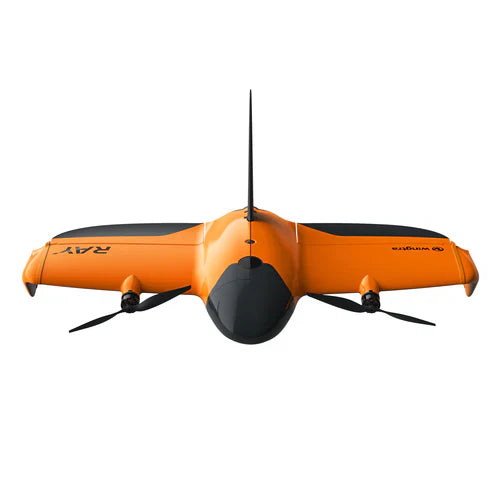

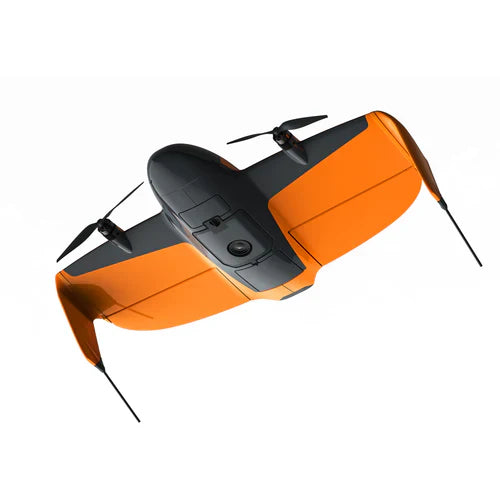

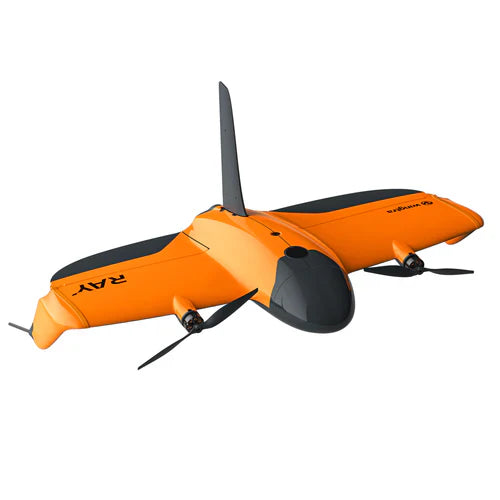

WingtraRAY MAP61 Bundle

VTOL fixed-wing mapping drone with the 61MP MAP61 payload for large sites.

WingtraRAY takes off and lands vertically from a 2 × 2 m pad, then flies as a fixed-wing aircraft to cover large areas in a single flight. The MAP61 payload uses an obliquely mounted 61MP full-frame sensor that captures a 93° swath, producing 2D orthomosaics and 3D models from one grid with about 50% fewer images to process. A PPK module is included for survey-grade results.

Key specs

• Sensors: MAP61 61MP full-frame sensor with a 93° swath; 1.2 cm/px GSD at 54 m

• Accuracy: PPK capable with up to 3 cm absolute accuracy (RMSE)

• Flight time: Up to 60 minutes

• Performance: Up to 460 ha (1,140 ac) per flight at 2.7 cm (1.06 in) GSD

• Build: Forward-looking obstacle avoidance, adaptive geofence, dual hot-swap batteries and radio plus LTE telemetry

• Origin: Switzerland



With DroneDeploy

Export MAP61 imagery and PPK data from Wingtra's software and process it in DroneDeploy. The resulting maps and models line up with data from the rest of your fleet on the same project. DroneDeploy software plans sold separately.

What's in the box

• WingtraRAY aircraft, ready to fly

• WingtraRAY MAP61 payload

• Tab Active3 tablet

• Telemetry module (2.4 GHz)

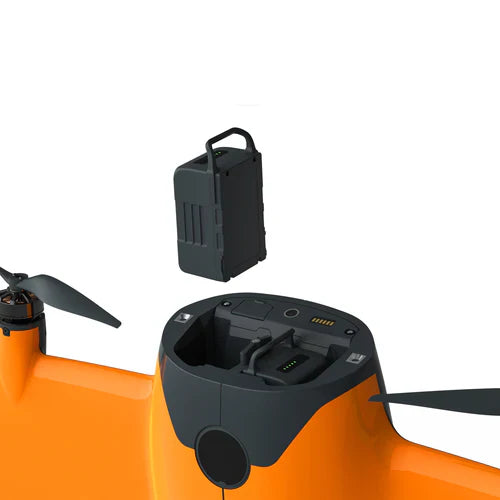

• Flight batteries × 4 (two sets; two batteries required per flight)

• PPK, drone operating system and apps package (tablet, desktop and browser apps for mission planning, data capture and geotagging)

• WingtraGROUND

• Hoodman 8 ft drone landing pad

• Flight battery charger with dock and cables

• T10 Torx screwdriver for drivetrain, parachute and repairs

• USB-C to SD card adapter

• Rugged drone hard case

• Drone Nerds White Glove service for DroneDeploy bundles
