Reach RS4 with Survey mount and Seco Biopod
$4,437.00
Skip to product information
Reach RS4 with Survey mount and Seco Biopod
$4,437.00
Key Features
Emlid Reach RS4 with survey pole to collect data with a rover and a bipod to fix it over a point when needed. Everything you need for high accuracy workflows.

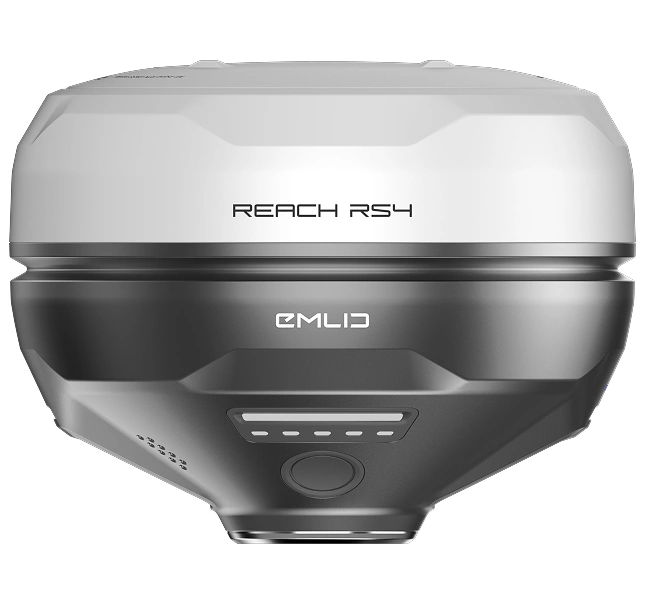

Emlid Reach RS4
All-band RTK GNSS receiver with tilt compensation.
High precision even under a dense canopy. Comes with a mobile app.
High precision
RTK: 7 mm + 1 ppm
Tilt compensation: RTK: 2 mm + 0.3 mm/°
All-band support
GPS: L1C/A, L2C, L5
GLONASS: L1OF, L2OF
Galileo: E1-B/C, E5a, E6
BeiDou: B1I, B1C, B2a, B3I
QZSS: L1C/A, L1C/B11, L2C, L5
NavIC: L1-SPS Data, L5-SPS
Base and rover
915 MHz LoRa
450 MHz UHF
NTRIP
16 hours on one charge
Li-Ion battery, USB Type-C charging
Durability
Magnesium alloy body, IP68 rating and operating temperatures ranging from -40 to +65°C
Package includes:
- Reach RS4
- Carrying case
- USB Type-C cable
- LoRa Antenna 860-930 MHz
- UHF Antenna 410-470 MHz

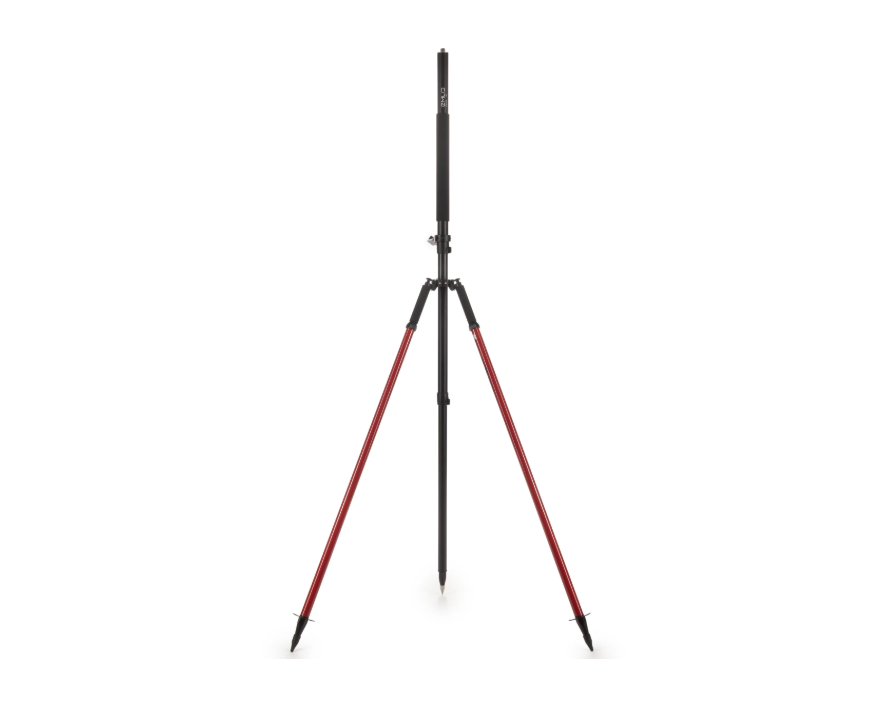

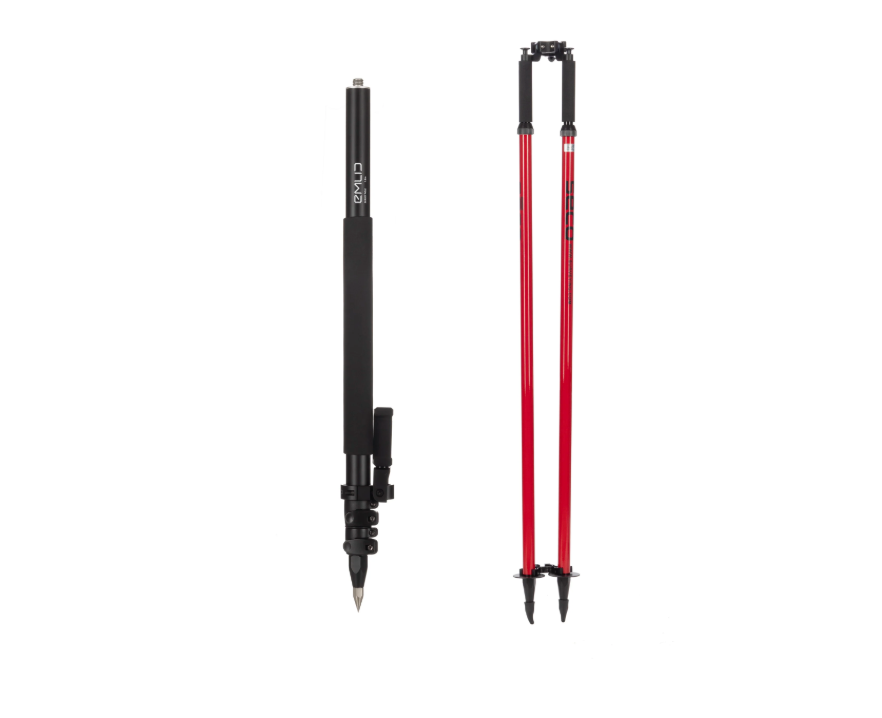

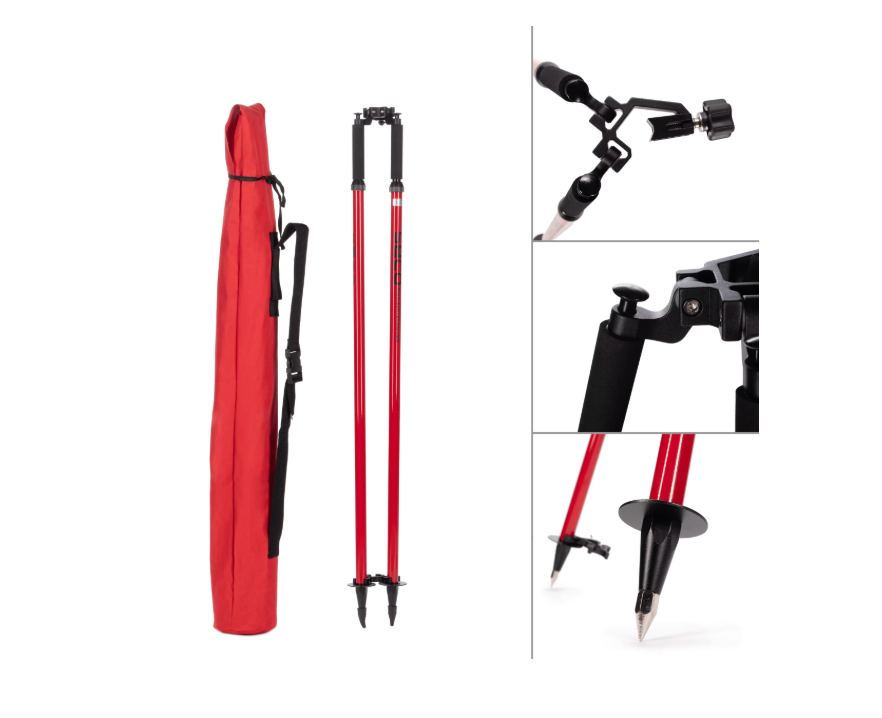

Seco Biopod
Thumb-release bipod for setting up a freestanding survey pole.
Package includes:
- 1 x Bipod
- 1 x No-crush bipod head
- 1 x Bag
- 1 x Clip to hold legs together for easy transport

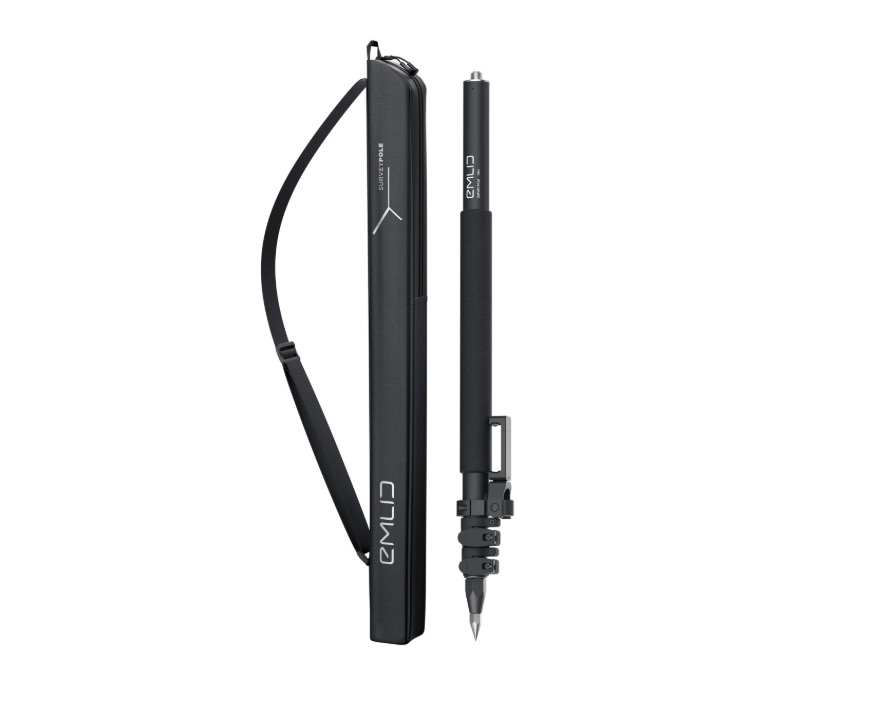

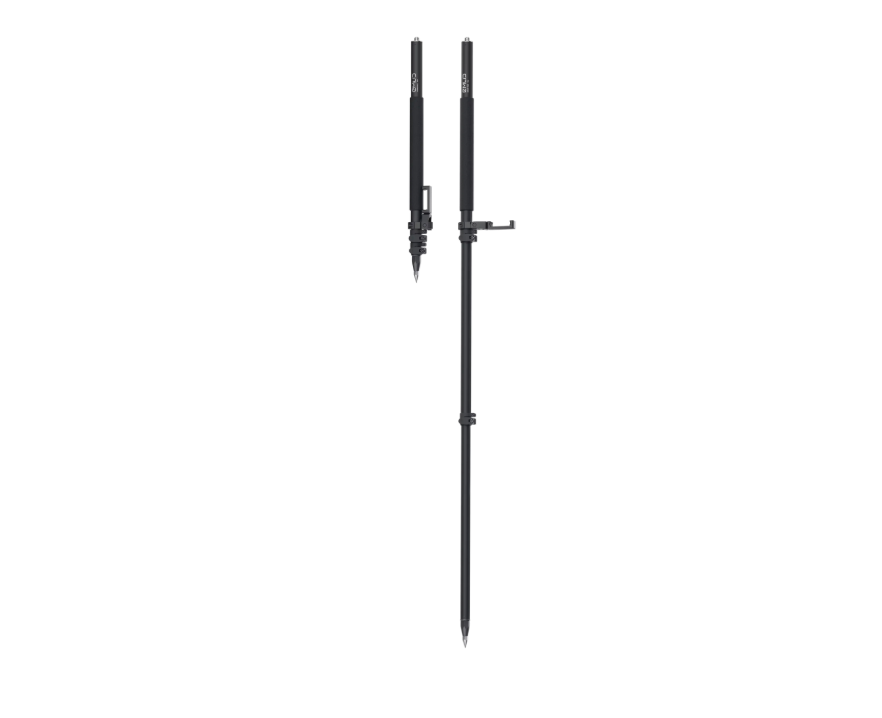

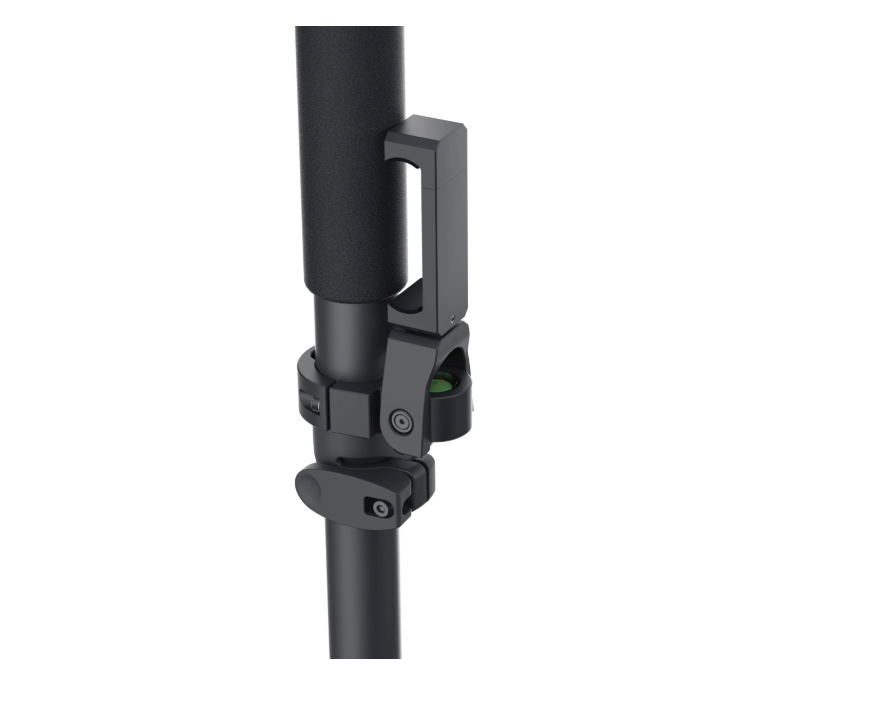

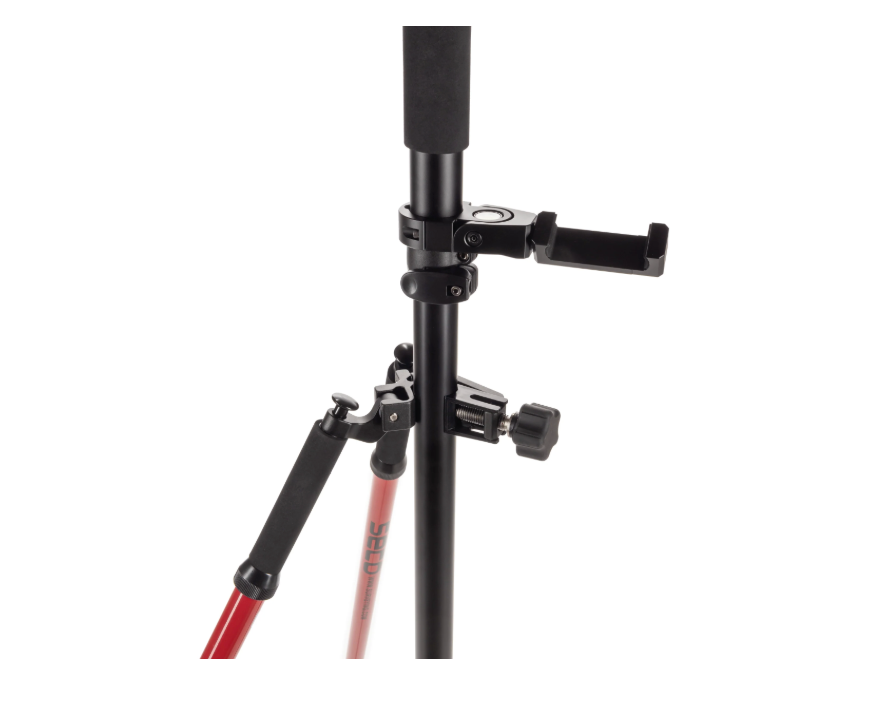

Survey Poll with Smartphone Mount
The three-section construction delivers reliable stability with the help of solid flip locks. It comes equipped with a smartphone mount that fits most control devices and a carrying bag.
0.74 m closed length, 1.8 m maximum height, 900 g total weight
Package includes
— 1 x Survey Pole
— 1 x Carrying bag
